Missing fastener?? Help....

Having Problems with your BMW R1200RT/R1250RT? or have some Maintenance and Service questions?
Post Reply
SD1
Posts: 58
Joined: Tue Aug 16, 2022 12:41 am
Location: Rocket City, USA
Bike Model and Year: 2009 BMW R1200RT-P
Been liked: 13 times
United States of America

Missing fastener?? Help....

Post by SD1 »

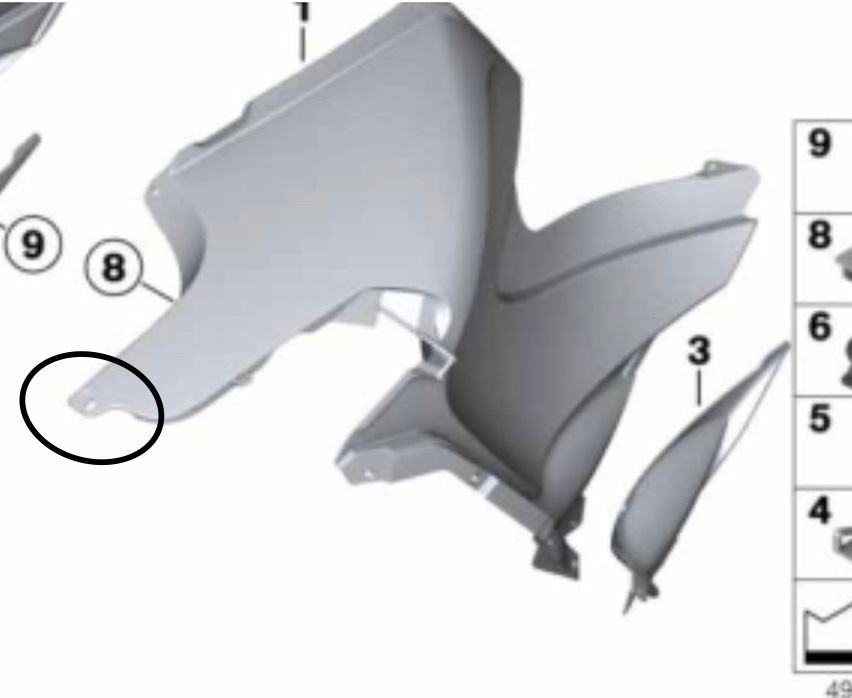

I am missing the female fastener for the screw hole shown in the pic. This is the left side body piece that goes over the tank, top front of the fairing just below the cluster. There is a pretty decent size square cutout that this tab fits over, I believe there should be a female receiver for an M5 bolt that would secure this tab marked n the pic. I have both the M5 female clip on nuts and the M5 bolts but the square is too large, It must be missing something?

Sorry, its kind of a crap pic, I could not find anything on the microfiche to show where this tab connects to. Any help would be appreciated. Its rattling and making me crazy... : )
Attachments
User avatar
David.
Subscriber
Posts: 8300
Joined: Fri Nov 07, 2014 7:29 pm
Location: North Yorkshire
Bike Model and Year: R1200RT (Camhead) 2012
Been liked: 387 times
Great Britain

Re: Missing fastener?? Help....

Post by David. »


The square hole in the frame tube takes, item 8, Part Number 51 71 1 916 199, Description LOCK INSERT

The fairing panel is secured with, item 9, Part Number 51 71 1 916 197, Description LOCK

This video is for a Camhead but FF to 6:16 shows the clip.
Cornish_Camhead
Posts: 13
Joined: Sat Jan 14, 2017 8:31 pm
Location: North Cornwall
Bike Model and Year: R1200RT 2012
Has liked: 3 times
Been liked: 1 time
Great Britain

Re: Missing fastener?? Help....

Post by Cornish_Camhead »

I used a cable tie when I lost mine for a quick fix... :lol:
63 plate Camhead RT SE with NAV 5, 22l topbox, rear panniers with flat lids, RTP cooling fan, LED side lights, headlight protector, grip puppies, RTP engine bars. Stage 1 remap, sport end can, last of the air/oil cooled RT model.
