BMW throttle body pulley repair kit ATC Aluminium Throttle Cam

Post by **IvanIvanov92** » Tue May 23, 2023 2:41 pm

Facebook -> https://www.facebook.com/profile.php?id=100090938976784
Etsy link ---> https://www.etsy.com/shop/ATCam?ref=sel ... form-mcnav
Website ---> https://atcam.shop
eBay--------> https://www.ebay.com/itm/404670769702

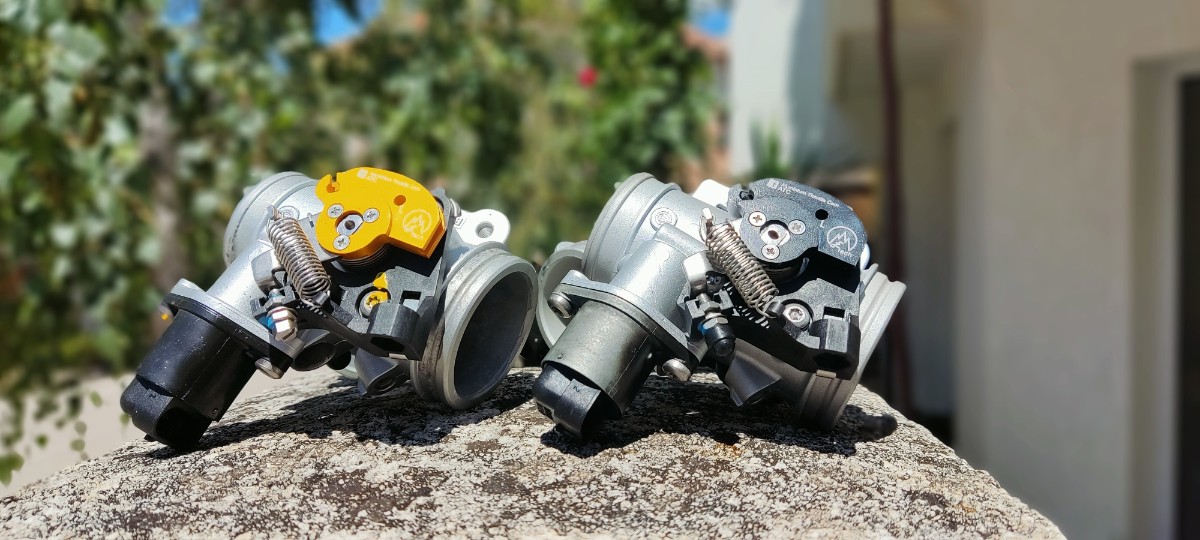

: IMG_20230809_133208.jpg (175.74 KiB) Viewed 1470 times

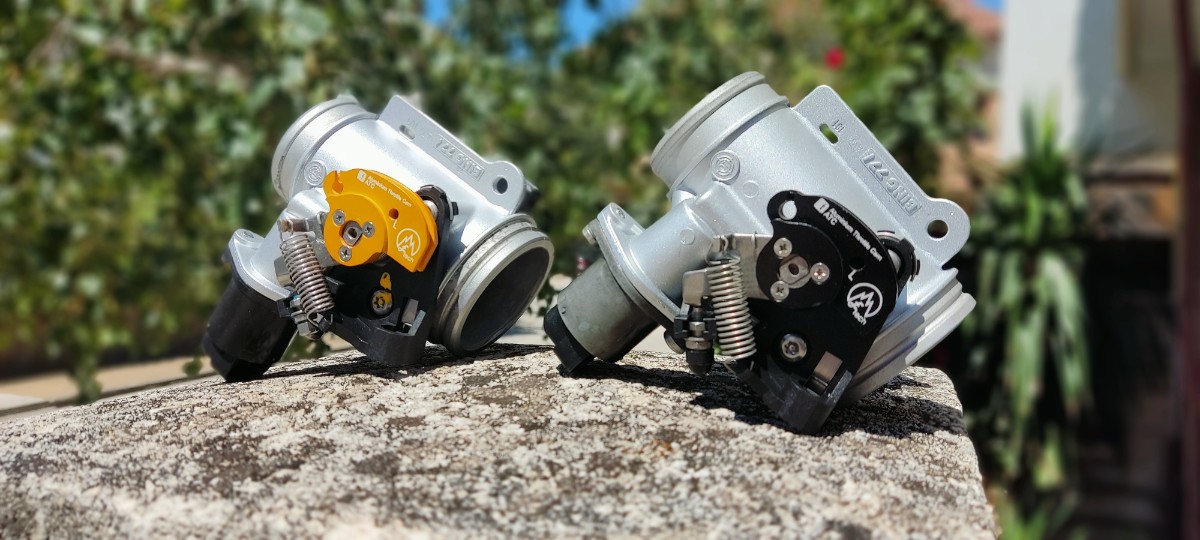

: IMG_20230809_133440.jpg (164.71 KiB) Viewed 1470 times

Discription:

Repair kit for replacing cracked plastic throttle Pulley (cam). Pulley (cam) made of Aluminum alloy 6082 T6 is a medium strength alloy with excellent corrosion resistance. It has the highest strength of the 6000 series alloys. Applications of 6082 is typically used in: Highly stressed applications, Trusses, Bridges, Cranes, Transport applications, Ore skips.
The ready machined parts goes through electrochemical anodization process (25 microns Marine coat for marine applications i.e window frames within a few hundred meters of the sea or those in geothermal areas ) to improve the durability of the aluminium alloy , after which color is added for aesthetics.

NB!!! Compatible models :

HP2 2005 - 2010 Air/Oil cooled
R1200GS/GS adventure 2005 - 2012 also 2013 Air/Oil cooled
RG1200GS 2004 - 2006 Air/Oil cooled
R1200R 2006 - 2014 Air/Oil cooled
R1200RT 2003 - 2013 Air/Oil cooled
R1200RT-P 2003 - 2013 Air/Oil cooled
R900RT 2005 - 2010 Air/Oil cooled
R1200S 2006 - 2008 Air/Oil cooled
R1200ST 2003 - 2008 Air/Oil cooled
R nine T 2013 - 2020 Air/Oil cooled
R1200 BAJA 2010 - 2021 Air/Oil cooled

Note!:

Even if your model is missing in the compatible list. Due to the application of same throttle body installed in different engine models the repair kit is possible to be compatible with other engine models.

Colour:

Black (by request), Yellow (by default)

Repair kit contents:

The repair kit includes pair of cams (left and right), fastening element 6 pieces M3 screws and 2 pieces small flanges with threaded holes M3, all made from stainless steel.

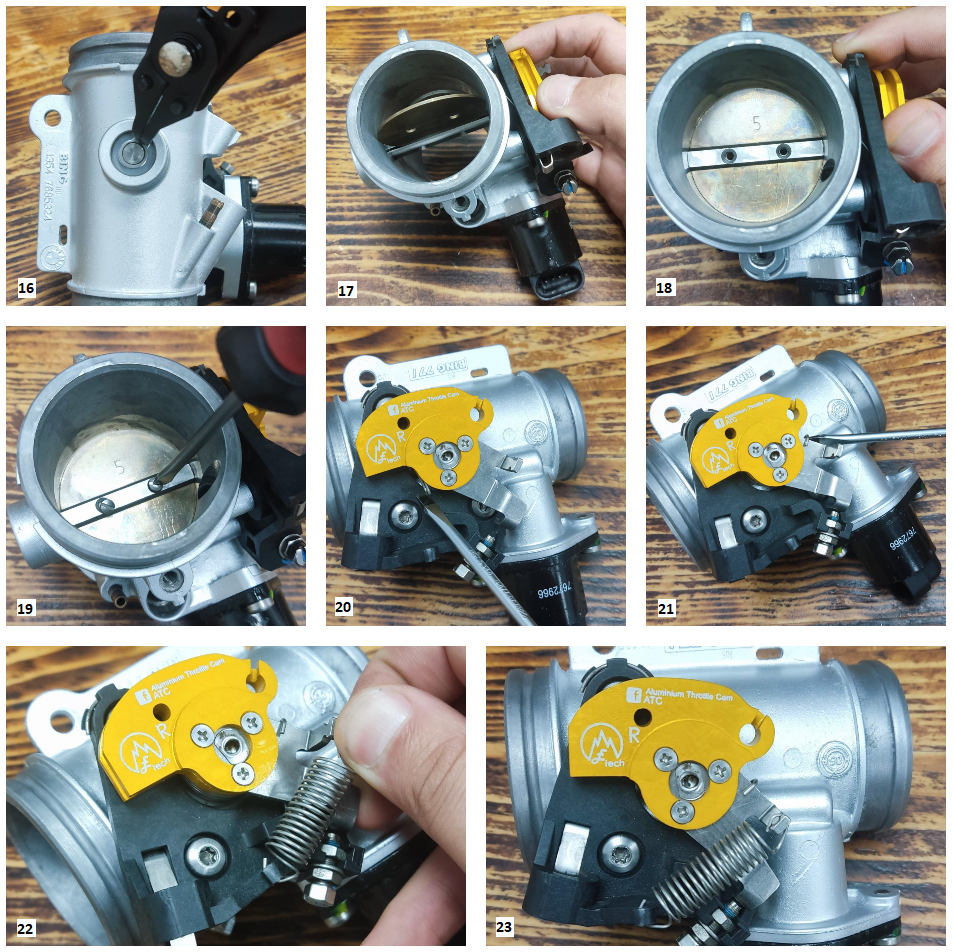

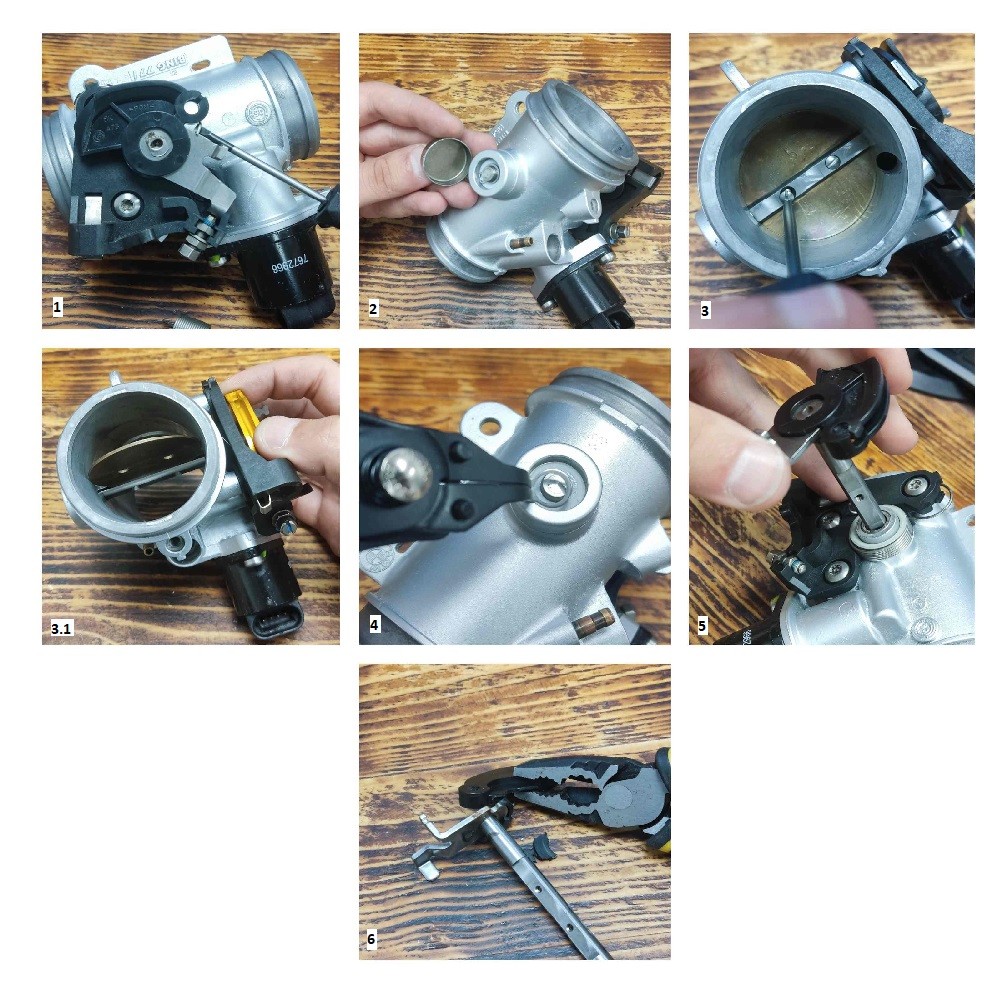

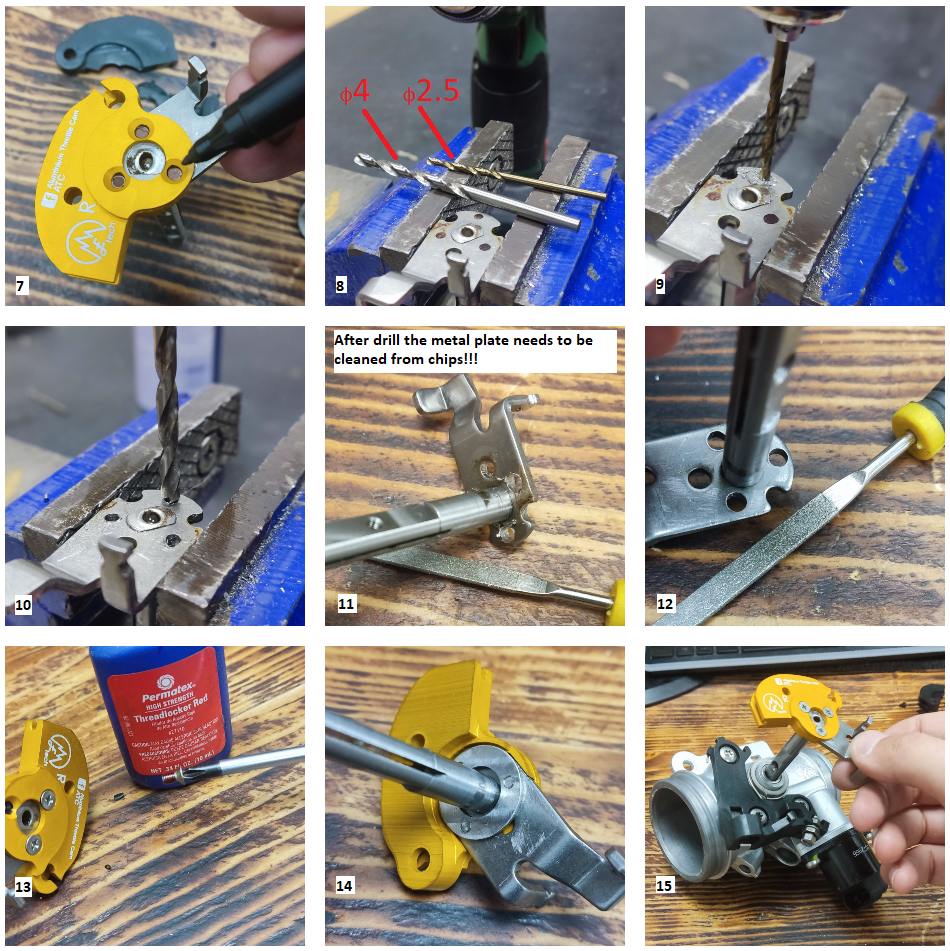

HOW TO INSTALL on YouTube :

Additional information about HOW TO INSTALL and video on FB page.

https://www.facebook.com/profile.php?id=1000909389

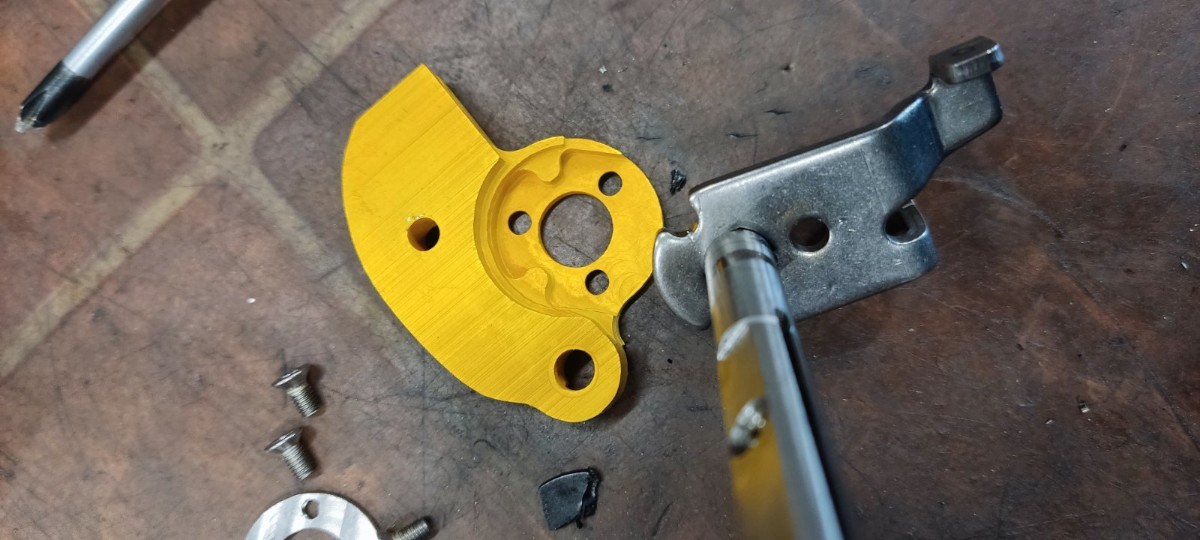

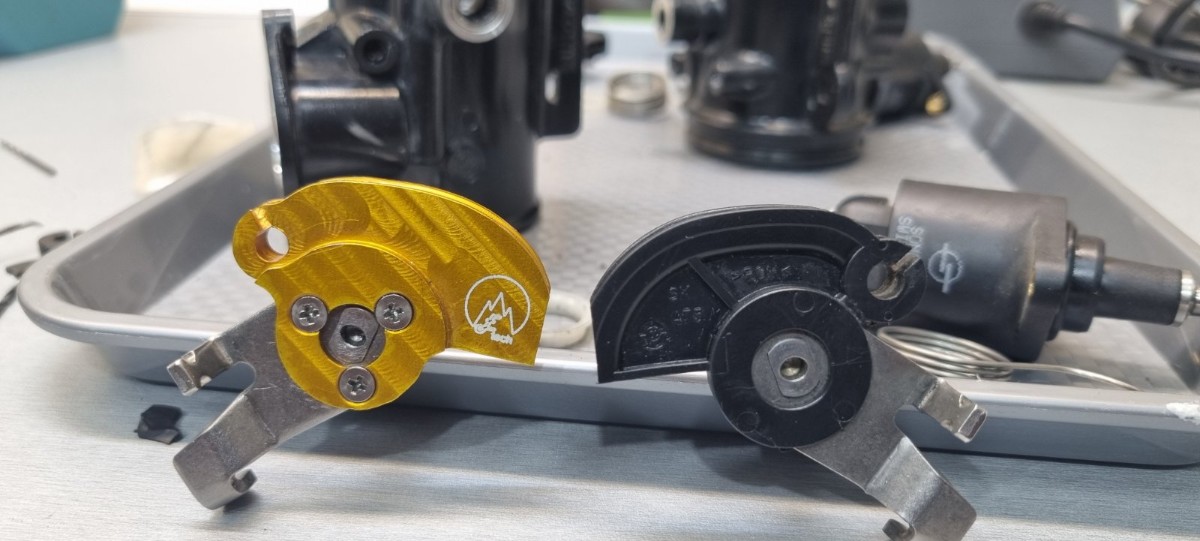

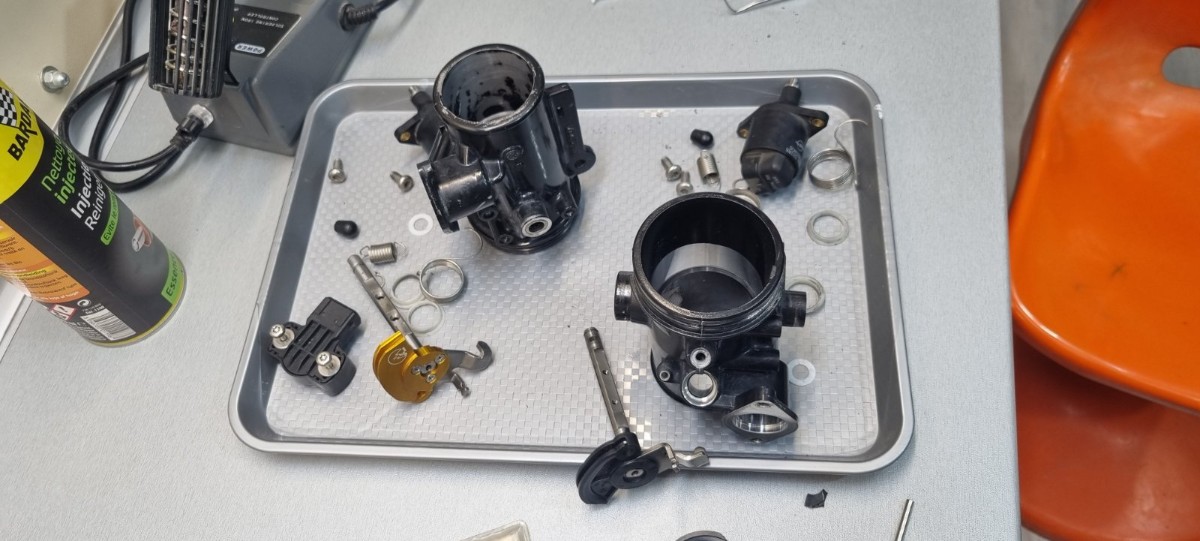

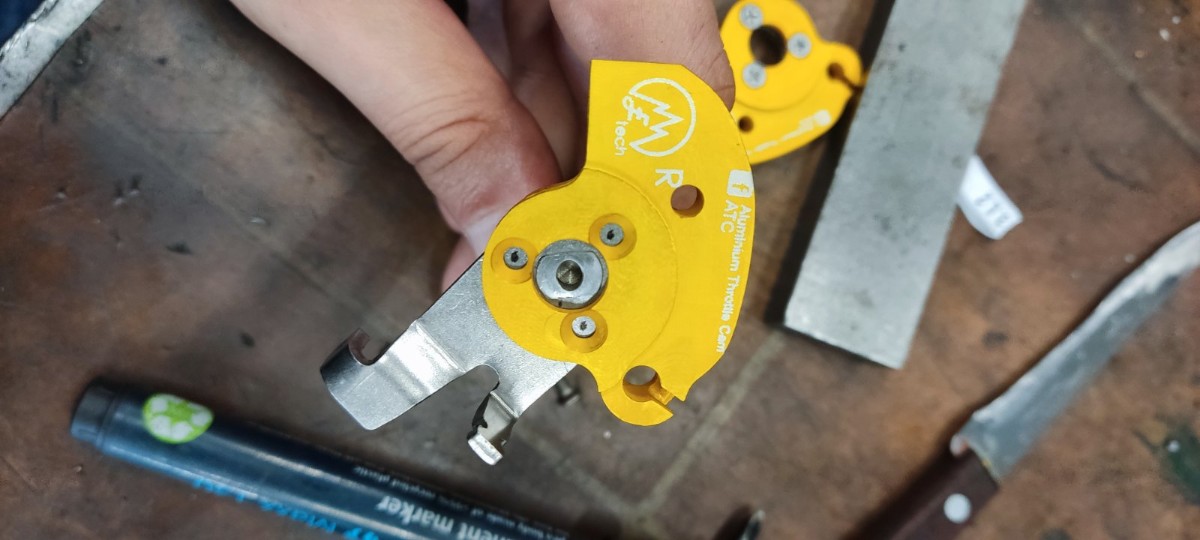

I have also installed a pair of aluminium pulleys on my BMW. The attached photo is from the moment when I install them.
Happy to share it, ride safe !
