GPS connector on 2022 RT1250RT

Post by Topgun62 »

Hi guys,
Sorry if this has been asked before, but I have a question about the gps connector which is found below the left hand bar. When I pulled the two parts apart I was expecting to see a red and a black wire. But what I actually have is a yellow and brown on one side of the connector and white and black on the other side.
I have attached a couple of photos, but I am wondering now if this is the right connector?
My bike is a 2022 model.
Any advice would be much appreciated.
Cheers
Chris
Attachments
One half of the connector
One half of the connector
connector 2.jpg (151.37 KiB) Viewed 977 times

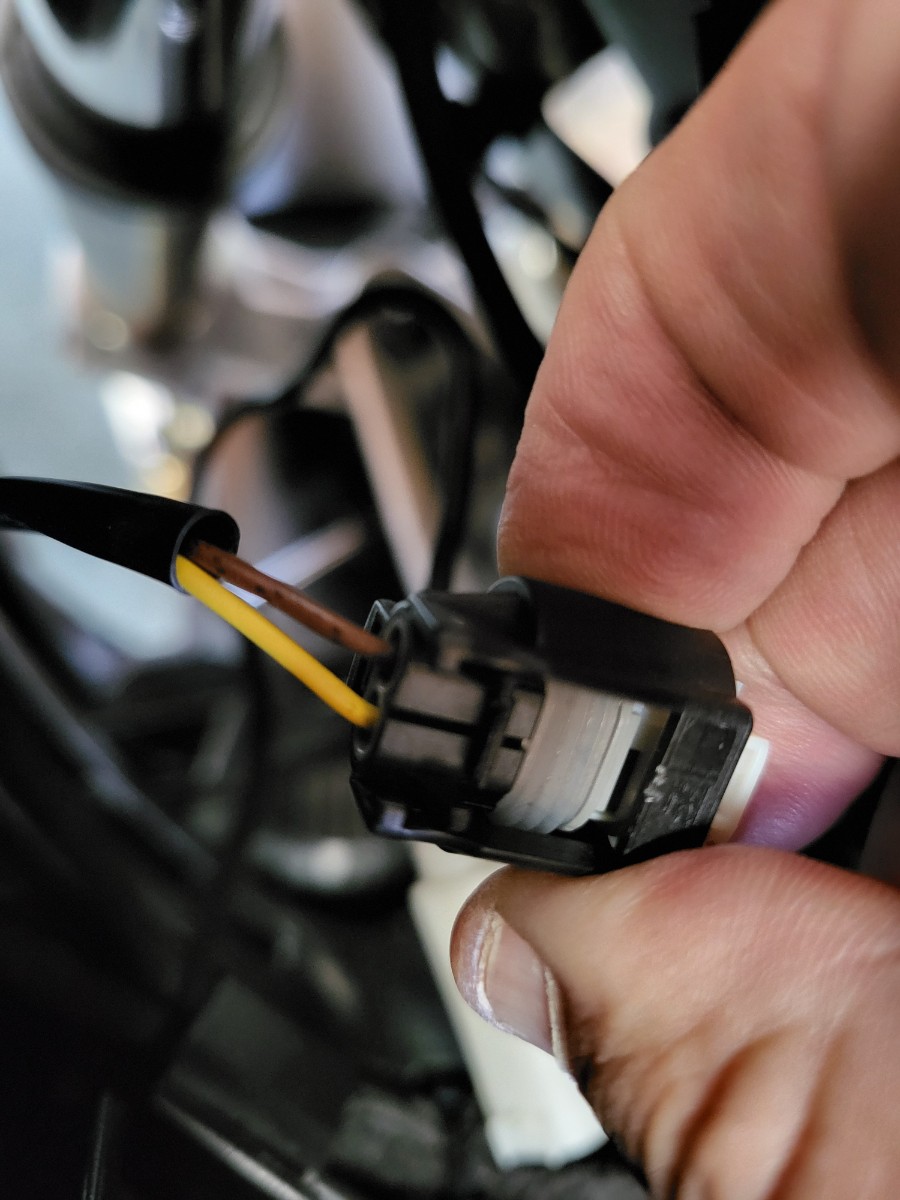

The other half of the connector
The other half of the connector
connector 1.jpg (203.24 KiB) Viewed 977 times
TassieTone
Posts: 3
Joined: Mon Jul 08, 2024 1:01 am
Bike Model and Year: R1250RT 2023
Australia

Re: GPS connector on 2022 RT1250RT

Post by TassieTone »

Looks like the wrong connector, the one for the gps only has one side with wires going into it and a blanking cap on the other side. I think the connector you have is the one that is cable tied to the inside of the left fairing.
This YouTube video shows where it is,
