Lever plunger ?

Post by Panman40 »

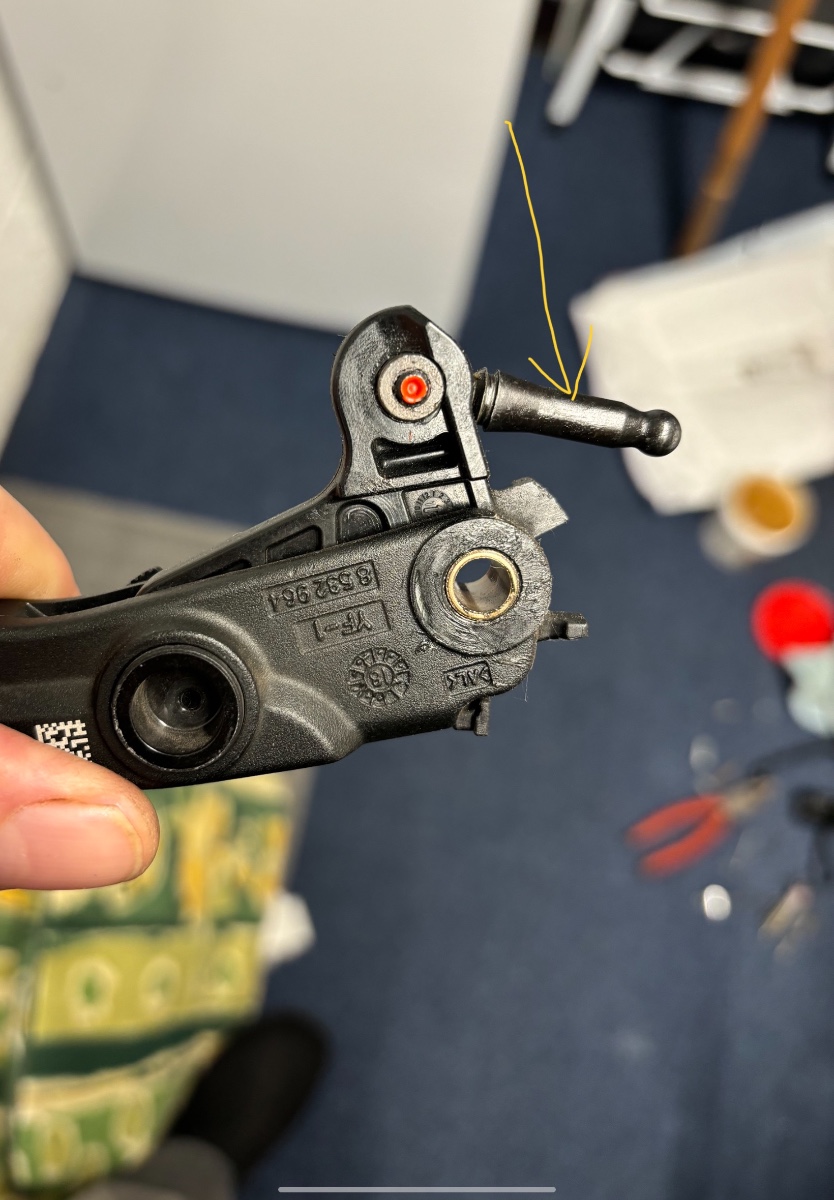

So after swapping my levers over I managed to mess up the tiny 2mm Allen grub screws you have to loosen ( covered in red threadlock) , I thought each part could be purchased separately having read another forum but the dealer said unlikely as it looks like that plunger rod is part of the master cylinder at £385!!.
Anyone know different ?.
Attachments
User avatar
Stu
Administrator
Posts: 1584
Joined: Wed Jun 02, 2021 9:13 pm
Location: Hull, UK
Bike Model and Year: 2016 R1200RT
Has liked: 554 times
Been liked: 511 times
Great Britain

Re: Lever plunger ?

Post by Stu »

What do you mean you have messed it up?
Panman40
Subscriber
Posts: 488
Joined: Tue Mar 22, 2022 8:46 pm
Has liked: 474 times
Been liked: 76 times
Great Britain

Re: Lever plunger ?

Post by Panman40 »

sakm wrote: Sat May 25, 2024 10:48 am What do you mean you have messed it up?
Rounded out the 2mm Allen grub screws as they were very tight with loctite on the brake side, the clutch side was fine. It’s usable but I’d rather replace it.
User avatar
David.
Subscriber
Posts: 8300
Joined: Fri Nov 07, 2014 7:29 pm
Location: North Yorkshire
Bike Model and Year: R1200RT (Camhead) 2012
Been liked: 387 times
Great Britain

Re: Lever plunger ?

Post by David. »

Remove the clutch side, check the size and see if Stig Fasteners have one to fit, https://a2stainless.co.uk/page/1/?s=gru ... pe=product

I've read that they may by M4 x 8mm x 0.7mm pitch.
User avatar
Stu
Administrator
Posts: 1584
Joined: Wed Jun 02, 2021 9:13 pm
Location: Hull, UK
Bike Model and Year: 2016 R1200RT
Has liked: 554 times
Been liked: 511 times
Great Britain

Re: Lever plunger ?

Post by Stu »

David. wrote: Sat May 25, 2024 1:35 pm Remove the clutch side, check the size and see if Stig Fasteners have one to fit, https://a2stainless.co.uk/page/1/?s=gru ... pe=product

I've read that they may by M4 x 8mm x 0.7mm pitch.
I believe its all part of the plunger so you can't just replace the grub screw
User avatar
Stu
Administrator
Posts: 1584
Joined: Wed Jun 02, 2021 9:13 pm
Location: Hull, UK
Bike Model and Year: 2016 R1200RT
Has liked: 554 times
Been liked: 511 times
Great Britain

Re: Lever plunger ?

Post by Stu »

Panman40 wrote: Sat May 25, 2024 1:00 pm Rounded out the 2mm Allen grub screws as they were very tight with loctite on the brake side, the clutch side was fine. It’s usable but I’d rather replace it.
That makes sense! I would maybe scour ebay and see if you can get a replacement because as you say you can't just replace the plunger :?
User avatar
David.
Subscriber
Posts: 8300
Joined: Fri Nov 07, 2014 7:29 pm
Location: North Yorkshire
Bike Model and Year: R1200RT (Camhead) 2012
Been liked: 387 times
Great Britain

Re: Lever plunger ?

Post by David. »

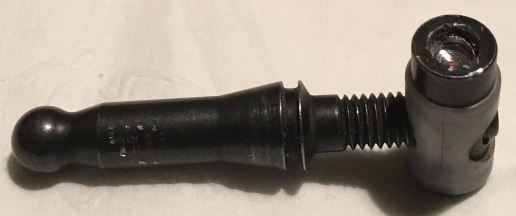

Is it the plunger adjuster or grub screw in the barrel which is rounded out.
If it's the grub screw, this might do the trick, https://a2stainless.co.uk/product/m4-x- ... in-914-a2/
User avatar
David.
Subscriber
Posts: 8300
Joined: Fri Nov 07, 2014 7:29 pm
Location: North Yorkshire
Bike Model and Year: R1200RT (Camhead) 2012
Been liked: 387 times
Great Britain

Re: Lever plunger ?

Post by David. »

Panman40 wrote: Sat May 25, 2024 7:49 amI managed to mess up the tiny 2mm Allen grub screws you have to loosen.

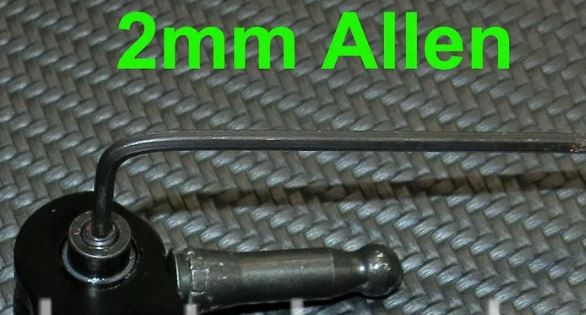

Is this the grub screw in question which needs to be loosened to adjust or remove the plunger.
2mm Allen.JPG
2mm Allen.JPG (44.27 KiB) Viewed 2238 times
Adjusting the plunger.
Adjusting Plunger.JPG
Adjusting Plunger.JPG (34.86 KiB) Viewed 2235 times
Panman40
Subscriber
Posts: 488
Joined: Tue Mar 22, 2022 8:46 pm
Has liked: 474 times
Been liked: 76 times
Great Britain

Re: Lever plunger ?

Post by Panman40 »

David. wrote: Sat May 25, 2024 7:20 pm Is it the plunger adjuster or grub screw in the barrel which is rounded out.


If it's the grub screw, this might do the trick, https://a2stainless.co.uk/product/m4-x- ... in-914-a2/
Both!, are you thinking drill them out and try and re tap the threads ?.
Panman40
Subscriber
Posts: 488
Joined: Tue Mar 22, 2022 8:46 pm
Has liked: 474 times
Been liked: 76 times
Great Britain

Re: Lever plunger ?

Post by Panman40 »

sakm wrote: Sat May 25, 2024 6:26 pm I believe its all part of the plunger so you can't just replace the grub screw
Ahh yes your correct, I did adjust it using pliers but marked it up a little, I’m getting careless in my old age :lol:
User avatar
David.
Subscriber
Posts: 8300
Joined: Fri Nov 07, 2014 7:29 pm
Location: North Yorkshire
Bike Model and Year: R1200RT (Camhead) 2012
Been liked: 387 times
Great Britain

Re: Lever plunger ?

Post by David. »

Were the grub screws removed from both the brake and clutch levers, with the plungers being removed and reused in the replacement levers.
Panman40
Subscriber
Posts: 488
Joined: Tue Mar 22, 2022 8:46 pm
Has liked: 474 times
Been liked: 76 times
Great Britain

Re: Lever plunger ?

Post by Panman40 »

David. wrote: Sat May 25, 2024 8:19 pm Were the grub screws removed from both the brake and clutch levers, with the plungers being removed and reused in the replacement levers.
Yes, but I couldn’t remove the locking ones, I should of left it at a half turn really it’s a very strange setup to be honest.
User avatar
David.
Subscriber
Posts: 8300
Joined: Fri Nov 07, 2014 7:29 pm
Location: North Yorkshire
Bike Model and Year: R1200RT (Camhead) 2012
Been liked: 387 times
Great Britain

Re: Lever plunger ?

Post by David. »

I'm confused (easily done), were the plungers removed without removing the grub screws, then screwed back in.
Panman40
Subscriber
Posts: 488
Joined: Tue Mar 22, 2022 8:46 pm
Has liked: 474 times
Been liked: 76 times
Great Britain

Re: Lever plunger ?

Post by Panman40 »

David. wrote: Sat May 25, 2024 9:10 pm I'm confused (easily done), were the plungers removed without removing the grub screws, then screwed back in.
Yes, when I went to tighten the brake grub screw after threading in the plunger it was stuck fast and rounded out the hex. As it happened the thread on the plunger was a little burred so locked off tight when threaded back in.
User avatar
David.
Subscriber
Posts: 8300
Joined: Fri Nov 07, 2014 7:29 pm
Location: North Yorkshire
Bike Model and Year: R1200RT (Camhead) 2012
Been liked: 387 times
Great Britain

Re: Lever plunger ?

Post by David. »

Could the thread on the plunger be dressed up using a die. The grub screw in the barrel could be drilled out and threads re-tapped, together with the thread for the plunger. Or, drill out both threads and fit Time-Serts to repair the threads. Alternatively, have a new barrel manufactured.
