I've seen the Chigee AIO-5 BMW and said to myself : looks like a great solution! Let's try it
I bought a used cradle on marketplace and reinstalled the 3 wires connector. It turns on and off but I have no data aquisition (voltage, speed, gear, etc). I also installed my trusty Wunderlinq to double check if live data was actually being fed to the device and there is none!I'm trying to figure out since then what could be wrong... I can see at least two options but can't figure simple ways of validating them. Any help would be greatly appreciated!
- I could have a defective cradle, seems like a legit BMW one though and was in very good condition.
- I could have messed a cluster (KOMBI) config while playing with the "Moto Scan" application
I've double checked my kombi config options (see included screenshot) and can't see if I would have put something wrong... I could buy a new cradle but it's a random test... Otherwise I guess my next try would be to bring it to the dealer...

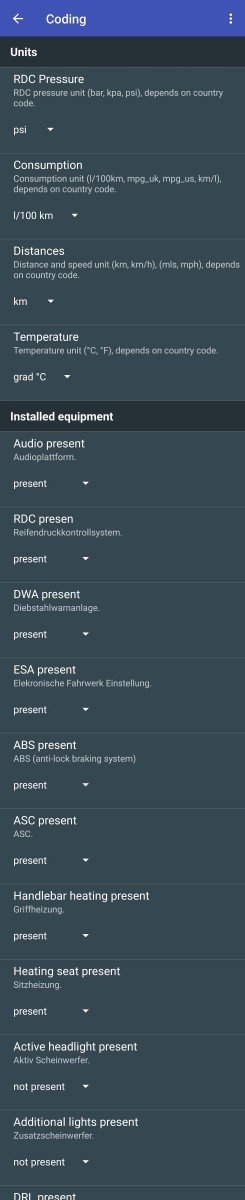

- Kombi-Coding_MotoScan1-sm.jpg (40.58 KiB) Viewed 6209 times

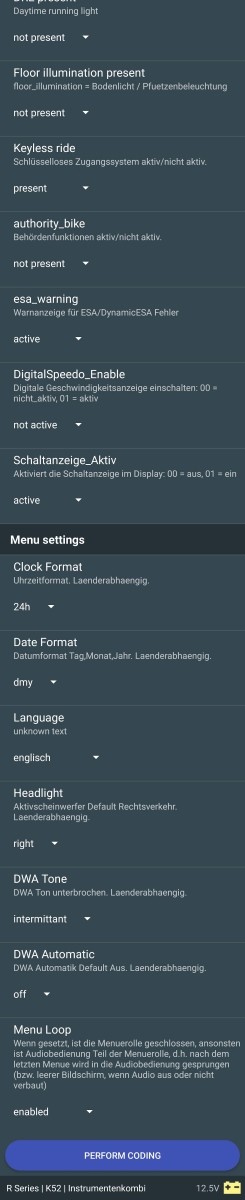

- Kombi-Coding_MotoScan2-sm.jpg (48.13 KiB) Viewed 6209 times
